Updated July 23,2025
Is your home a single-phase or three-phase site? How your home connects to the grid will influence which solar system works best for you.
Homes with three-phase power often have more complex installation requirements, especially when it comes to Powerwall 3.
At PSC Energy, we specialise in installing Powerwall 3, whether your home is single-phase or three-phase. We’ll help you assess your energy needs and goals, and then recommend the system that fits your home’s electrical setup.
In this article, you’ll learn:
- Understanding Your Home Setup: Single-phase vs. Three-phase Homes
- Installing a Powerwall 3 on a Three-Phase Home
- Problems When Installing Powerwall 3 on a Three-phase Site
- FAQ: Can You Install Powerwall on a Three-phase Site?
By the end of this article, you’ll understand how the Powerwall 3 performs in single-phase and three-phase homes, as well as the limitations of each setup.
If you’d like to bypass this article and dive deeper into a brilliant course about the Tesla Powerwall 3, we recommend checking out our Powerwall 3 Courses.
Understanding Your Home Setup: Single-phase vs. Three-phase Homes
Before installing a Powerwall 3, it’s important to understand your home’s electrical setup. Homes are typically connected to the grid through either a single-phase or three-phase connection. This affects how your solar and battery systems will function.
There is a common misconception that batteries like Powerwall 3 have phases, but this just isn’t true. Batteries, including Powerwall 3, store and release power as direct current (DC). It is only when the power passes through an inverter that it becomes alternating current (AC), which can be single-phase or three-phase.
The Powerwall 3 features a built-in hybrid inverter that converts DC to AC at 230 volts single-phase. However, its ability to operate on a three-phase site is made possible by net metering, which allows it to adapt to your home’s specific needs.
Most battery inverters are single-phase. The Tesla Powerwall 3’s built-in hybrid inverter is an 11.04 kW single-phase inverter. Now, just because the inverter is a single-phase inverter, it doesn’t mean that it won’t work perfectly fine on a three-phase home.
In fact, the Powerwall 3 is still an excellent solution for three-phase homes.
Single-phase Homes:
- A single-phase home is connected to the grid via one active wire (conductor) and one neutral wire. This setup sends one AC waveform through the home. If you have two wires running into your home from the grid, your house is likely single-phase.
- Homes with single-phase power are the best candidates for the Powerwall 3. It was designed for installation on a single-phase site. These homes receive 230 volts of power, which is typically enough to power most household needs.
- Single-phase homes are limited to smaller loads, with a maximum inverter capacity of 10kW.
Three-phase Homes:
- A three-phase home is connected to the grid via three active wires (conductors) and one neutral wire. It delivers three AC waveforms through the house. If your home has four wires connected to the grid, you likely have a three-phase connection.
- Three-phase sites can carry more power, typically 230 volts per phase, and 400 volts when measured phase-to-phase. Three-phase homes support larger loads and are better suited for homes with high electricity usage or large appliances, such as electric vehicle chargers or three-phase air conditioners.
- These homes can have an inverter capacity of up to 30 kW, making them ideal for larger solar systems and more powerful energy setups.
- In New South Wales, energy distributors require balanced phases for all three-phase sites connected to the grid. This means that the power load must be evenly distributed across the three active phases within a certain number of kilowatts in proportion to the inverter. The system uses net metering to distribute the power evenly. This ensures that your home receives the necessary electricity without overloading any single phase.
While the Powerwall 3 can be installed in a three-phase home, it is not designed to back up all three phases. It can only back up one phase at a time. This limitation is critical to understand.
If you’re interested in learning a bit more about single-phase and three-phase sites, you might want to check out the following article titled, Single-Phase vs. Three-Phase: How Are They Different?
Installing a Powerwall 3 on a Three-Phase Home
Ways to Install Powerwall 3 on a Three-phase Site
No Existing Solar: Powerwall 3 is installed on one phase with up to 20kW of solar. It backs up only one phase during outages. As a new solar system, the Powerwall 3 is installed as a DC-coupled system.
Existing Solar: Powerwall 3 can work with existing solar systems. You can either keep your current inverter (if it’s a string system) or remove it and use the Powerwall’s internal solar inverter for greater efficiency and better monitoring through the Tesla app. For existing solar systems, the Powerwall 3 must be installed as AC-coupled. It must also be installed as an AC-coupled battery when added to an Enphase microinverter system.

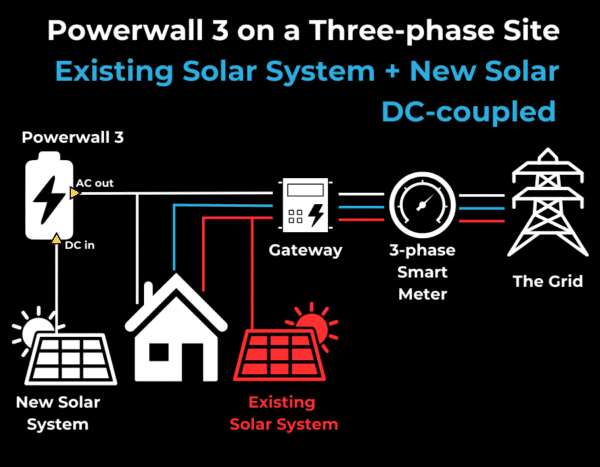

Existing Solar + New Solar: This option is only applicable to three-phase sites with existing solar installations. The existing solar remains on one of the non-Powerwall phases, while the new solar connects to the Powerwall for improved energy management and backup during outages on a different phase. Because this setup is installing a whole new system next to an existing one, the new Powerwall 3 system is DC-coupled. And it is still only able to back up the phase it’s installed on.
Ready to go solar? Click here.
When to Install Powerwall 3
A Powerwall 3 solar system is a great choice in several situations:
- Single-phase Homes: The Powerwall 3 is ideal for single-phase homes. It backs up one phase and provides enough power to run essential appliances during an outage.
- Homes with High Power Needs: The Powerwall 3 delivers up to 10kW of continuous power. This is more than enough for homes with high energy consumption, such as those with electric car chargers or heavy-duty appliances. It is a strong choice for homes that require reliable power during power outages.
- Enphase Systems: When AC-coupled with an Enphase microinverter system, it can double the home’s output, with 10kW coming from the solar source and 10kW coming from the stored energy in the battery.
- New Solar Installations: The Powerwall 3 offers excellent value when installed as part of a new solar system.
While Powerwall 3 is great when it’s AC-coupled onto an existing solar system, its value increases when DC-coupled and paired with solar panels.
If you’d like to learn more about the price of a Powerwall 3, you might want to check out the following article titled, How Much Does a Tesla Powerwall 3 Cost?
Click here for solar solutions.
Problems When Installing Powerwall 3 on a Three-phase Site
Despite the many benefits of the Powerwall 3, there are situations where it may not be the best choice.
Blackout Protection in Three-phase Homes:
Grid Outage: During a grid outage, only one phase (the phase connected to the Powerwall) will be backed up. Essential circuits, such as lighting, refrigerators, and your internet connection, remain powered during an outage.
It cannot back up all three phases during a blackout. It will only back up one phase, which means your other two phases will remain unpowered in the event of an outage.
However, most folks are pretty content to have their backup on one phase only. As long as your lights, WiFi, and refrigerator are all on the same phase, your Powerwall will backup, and you’ll be good.
Complicated Installations:
As we mentioned, installing the Powerwall 3 in a three-phase home may require additional equipment, such as extra Powerwalls or multiple inverters. This equipment is necessary to balance the power across all three phases, allowing them to sync with the grid.
In this case, the hybrid inverter in Powerwall 3 is capped at 10kW. The other two phases must be balanced within 5kW of each other. These are the rules established by local DNSPs (distribution network service providers). 10kW and 0kW and 0kW are unbalanced. To balance the phases, two other Powerwalls of 10kW need to be installed on the other two phases.
If your installer is unable to troubleshoot a solution, the Powerwall 3 inverter will be lowered to 5kW output. That’s only if the other two phases are left untouched. They’ll be within 5 kW of the phase the Powerwall is on.
Issues like this add complexity to the installation. This affects the performance and payback period for your Powerwall.
Increased Costs:
The extra equipment required to balance the phases increases both installation and maintenance costs. Homeowners should be prepared for higher upfront costs due to the complexity of the setup. This will extend your payback period. Please note that this is only applicable to three-phase sites.
If you’d like to learn more about Tesla products and their potential problems, we recommend you check out the following article titled, Problems with Powerwall 3.
Click here for sunshine savings.
Choosing the Right System for Your Home
The Powerwall 3 is an excellent choice for single-phase homes or homes with high power demands. It integrates smoothly into these setups and provides reliable backup power. However, for three-phase homes, the Powerwall 3 has some limitations. It cannot back up all three phases at once, and installing it can be complex and costly.
At PSC Energy, finding the right system for your home depends on your electrical setup, energy needs, and long-term goals. It’s essential to understand what works best for your specific situation.
If you’d like to learn more about Tesla products, we recommend you check out the following article titled, Tesla Powerwall 3 Review: An In-Depth Look at Tesla’s New Solar Battery.
FAQ: Can You Install Powerwall on a Three-phase Site?
What is the difference between single-phase and three-phase power for homes?
Single-phase homes have one active wire and one neutral wire. They carry one waveform of alternating current and typically supply 230 volts of power. This is the most common setup for Australian households. Three-phase homes have three active wires and one neutral wire. They deliver three waveforms of current and are better suited for homes with high power needs or large appliances. This setup can support up to 400 volts, allowing for larger solar systems and increased inverter capacity.
Can a Tesla Powerwall 3 be installed on a single-phase home?
Yes, the Tesla Powerwall 3 is ideal for single-phase homes. It was designed with single-phase systems in mind. The built-in hybrid inverter supplies 230 volts of power, which is perfect for most households. It can deliver 10kW of continuous power and provides reliable backup during outages. Most single-phase homes in Australia will benefit from the Powerwall 3.
Can the Powerwall 3 be installed on a three-phase home?
Yes, the Powerwall 3 can be installed on a three-phase home. However, it can only back up one of the three phases during a blackout. It works well for powering essential circuits, such as fridges, lights, and internet routers, as long as they are wired to the backed-up phase. The system uses net metering to work efficiently across all three phases during regular operation.
What are the installation options for Powerwall 3 on a three-phase site?
You can install Powerwall 3 on a three-phase home in three main ways:
- No existing solar: Install Powerwall 3 with new solar panels on one phase. This setup will be DC-coupled and back up that single phase.
- With an existing solar system: Powerwall 3 connects to your current solar system as an AC-coupled battery. It works with string inverters or Enphase microinverters.
- With existing and new solar: Keep the old solar on one phase and install new solar with Powerwall 3 on a different phase. This lets you use DC-coupling for the new system and manage energy more efficiently.
Each setup affects how your home utilises solar power and what can be backed up during a power outage.
Does Powerwall 3 back up all three phases during a power outage?
No, the Tesla Powerwall 3 only backs up one phase during a grid outage. This means only the circuits connected to that phase will stay powered. To back up all three phases, you would need three Powerwalls, one for each phase. Most homeowners choose to back up the phase that includes essential appliances, such as lights, the fridge, and WiFi.
Why is Powerwall 3 not always the best fit for three-phase homes?
Powerwall 3 has limitations on three-phase homes. It can only back up one phase, and meeting local energy distributor rules can make installations more complex. To comply with phase balancing requirements, homeowners may need extra Powerwalls or other equipment. This increases installation costs and can lower the battery’s performance and financial return if not installed correctly.
What are the common problems when installing Powerwall 3 on a three-phase home?
There are three main challenges:
- Phase balancing: Powerwall 3 can only deliver 10kW on one phase. To balance the system, energy distributors may require 5kW on each of the other phases. This often means buying two more Powerwalls.
- Reduced inverter output: If you don’t balance the phases, the inverter’s output may be capped at 5kW.
- Higher costs: Installing extra Powerwalls and balancing equipment increases the total cost and complicates the installation process.
These factors can affect your system’s overall performance and return on investment.
Is Powerwall 3 better for new solar systems or existing setups?
Powerwall 3 works well with both, but it offers the most value when installed with a brand-new solar system. In new systems, it can be DC-coupled for better efficiency and improved app monitoring. In existing setups, Powerwall 3 must be installed as an AC-coupled system, especially when paired with Enphase microinverters. It still performs well, but it may not be as efficient as a fully integrated DC system.
Can Powerwall 3 be used with an Enphase microinverter system?
Yes, Powerwall 3 can be added to an existing Enphase system, but it must be AC-coupled. This means it operates alongside the existing Enphase inverters rather than replacing them. In this setup, the solar output and the battery output are combined, offering up to 20 kW of power during the day—10 kW from solar and 10 kW from the battery.
How does phase balancing work with Powerwall 3 on a three-phase site?
In New South Wales, energy distributors require the three phases to be balanced within a 5kW range. For example, if one phase outputs 10 kW, the other two must not be below 5 kW each. If they are unbalanced, your installer may need to install additional Powerwalls or reduce the inverter output to 5 kW. This rule helps prevent grid overload and ensures the safe operation of the system.
What should I consider before installing Powerwall 3 in a three-phase home?
Consider the following:
- You’ll need to back up only one phase, so make sure essential appliances are wired to that phase.
- The cost may be higher if extra Powerwalls or balancing equipment are needed.
- Your installer must understand local phase balancing rules to avoid system limitations.
- If you want full three-phase backup, Powerwall 3 alone will not be enough.
A proper consultation with an experienced installer, such as PSC Energy, will help you avoid common pitfalls.
